JIH-T3S Type - Automatic Single Head Tilting Sawing Machine

JIH-T3S Type - Automatic Single Head Tilting Sawing Machine JIH-T3S Type - Automatic Single Head Tilting Sawing Machine JIH-T3S Type - Automatic Single Head Tilting Sawing Machine
JIH-T3S Type - Automatic Single Head Tilting Sawing Machine JIH-T3S Type - Automatic Single Head Tilting Sawing Machine JIH-T3S Type - Automatic Single Head Tilting Sawing Machine

  • Automatic sawblade tilting from 22° to 135° on both sides, with precise automatic positioning for cutting length.

  • Three axes driven by high-performance servomotors ensure smooth, responsive movement.

  • Linear guideways on the X-axis significantly enhance positioning precision and machining accuracy, delivering superior performance unmatched by competing models.

  • Optional automatic feeding and cutting functions available for increased efficiency and automation.

SPECIFICATIONSJIH-AUTO3S
Angle control methodServomotor control auto angle setting
Auto positioning functionOptional connection to AUTO3000 system for automatic positioning

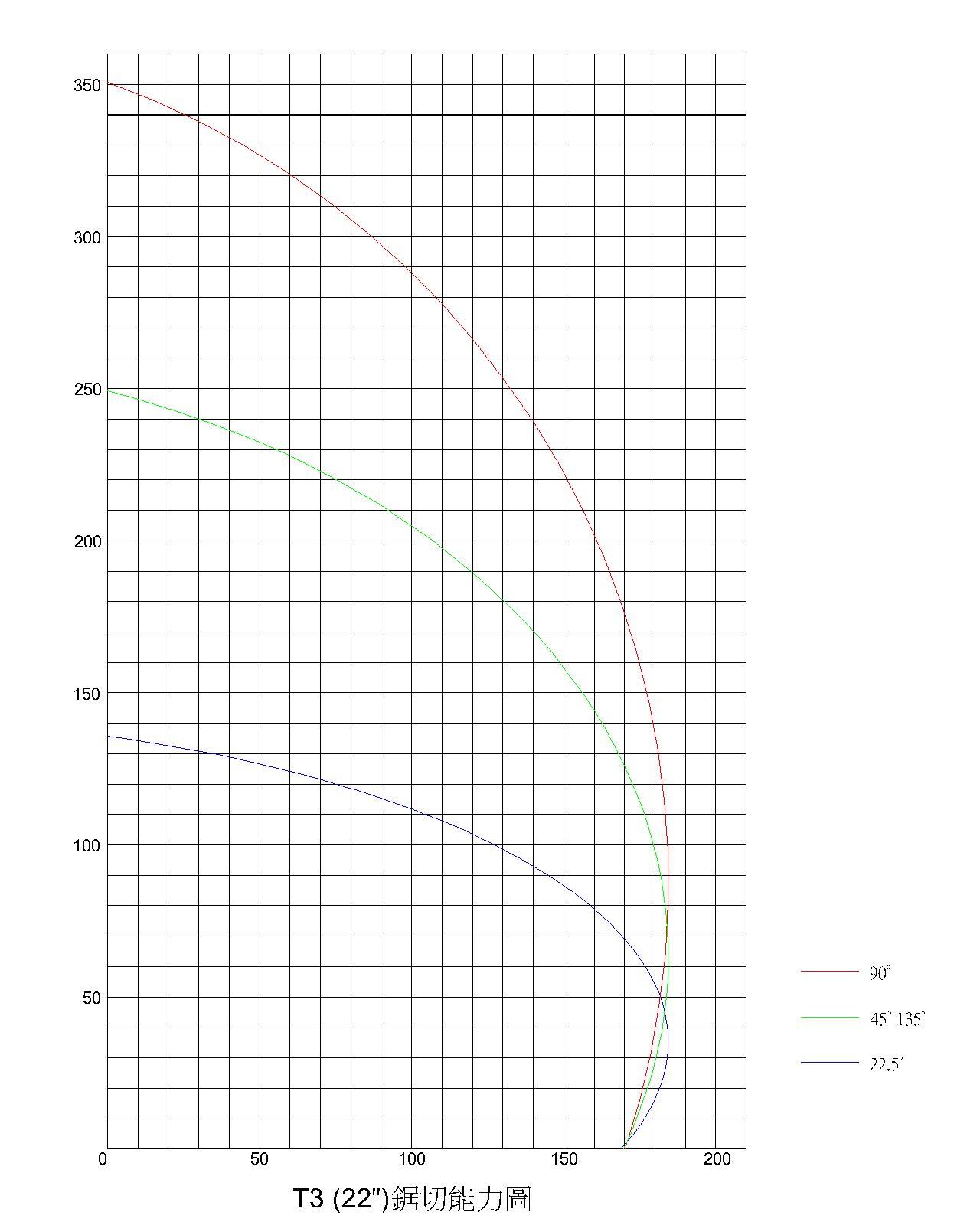

Cutting capacity (HxW)For 90° Cuts: 170 mm x 150 mm
For 45° Cuts: 180 mm x 125 mm
Max. cutting length6,500 mm
Range of sawblade tilting angle45°~90°~135°
Saw spindle speed2800 R.P.M
Saw Motor5HP x 1
ServomotorSaw Tilt (1kw) x 1
Sawblade size22" x 1" x1pcs
Air pressure4 - 6 kg/ cm²
Machine dimensions (LxWxH)1832 x 1863 x 1710 mm
Packing dimensions (LxWxH)2270 x 2010 x 1796 mm
Net/Gross weight1,390 / 1,450 kgs
