JIH - 18DB/24DB Type- NC Auto Series

Automation feed, positioning. oil spraying and cutting.
Concealed sawblade performs upward cutting for increased safety.
Ball screw is driven by servo motor for high accuracy.
Employ touch sensing screen for maximum operation convenience.
Equipped with NC control. PLC features extremely stable control performance. Electronic control parts are CE certified.
The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost.
Small dimesions of the machine to save space.
18DB/24DB Feeding length 290mm/360mm in one cycle the feeding system is available recycle feeding.
The feeding system is standard with hydraulic-pneumatic also we have option for hydraulic to make more powerful cutting.
Feed methods : 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

Standard Equipment

18'' Saw Blade x 1pce(for 18DB)/ 24'' Saw Blade x 1pce(for 24DB)、Toolbox

Model	JIH-18D B TYPE	JIH-24D B TYPE
Main Machine	JIH-18 D Type	JIH-24 D Type
Automatic Drive system	Servomotor driven Ballscrew	Servomotor driven Ballscrew
Max. Feed Distance (one time)	290 mm Unlimited recycle feed distance	360 mm Unlimited recycle feed distance

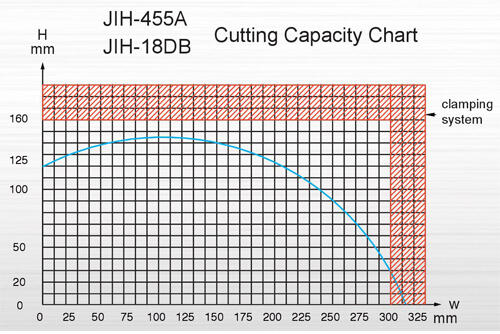

Cutting Capacity (H x W)	120x120, 100x200, 20x280 mm	160x300, 50x420 mm
Cutting Length Display & Set Up	BY touch screen	BY touch screen
Saw Speed	3,200 R.P.M.	1,800 R.P.M.
Saw Motor	7.5HP (Opt.10HP)	10 HP
Hydraulic Feed Motor	1 HP (Optional)	1 HP
Servomotor	400w	750w
Saw Blade Size	18" x 1"bore	24" x 1" bore
Max. Load	80 kgs	120 kgs
Table Height From Floor	860 mm	830 mm
Touch-Sensing screen	7"	7"
Air pressure	4~6 kgs/cm²	4~6 kgs/cm²
Machine Dimensions (L x W x H)	1,300 x 1,000 x 1,800 mm	1,675 x 1,337x 1,863 mm
Packing Dimensions (L x W x H)	1,420 x 1,100 x 2,000 mm	1,775 x 1,437 x 2,063 mm
Net / Gross weight	740 / 840 kgs	980/ 1,080 kgs

*We reserve the rights to modify above specification without notice.
