JIH-I Machinery

JIH - 24 L Type - Sawing Machine Series

L Type - Sawing Machine Series
L Type - Sawing Machine Series

Model

JIH - 24 L Type

Cutting Angle

90 °

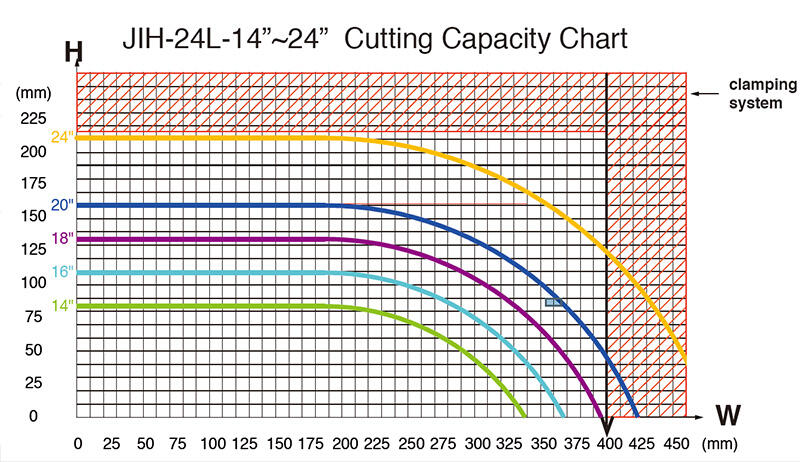

Cutting Capacity(HxW)

80 x 400 ,130 x 350,  175x210, 200x200mm

Spindle Speed

1,800~3,600 R.P.M.

Saw Blade Size

18", 20", 24" x 1" bore

Table Area

400x850mm

Table Height From Floor

920mm

Motor

15 HP (Gear Belt + Inverter)

Air Pressure

4~6 kgs /cm2

Conveyor Length(Opt.)

1~7 M

Machine Dimensions ( LxWxH )

1,420x1,875x1,756 mm

Packing Dimensions ( LxWxH )

1,540x1,995x1,876 mm

Net/Gross Weight

1,700 / 1,900 kgs

*We reserve the rights to modify above specification without notice.

  • CE Standard
  • Infeed, Outfeed Roller Table
  • Chip Collector
  • Horizontal Clamp
  • Hydraulic Feeding
  • Saw Blade
  • With Auto3000 for Automatic Positioning, Automatic Feeding(Push), Automatic Cutting
