JIH-24 C Type - Sawing Machine Series

C Type - Sawing Machine Series
C Type - Sawing Machine Series
  • To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
  • Concealed saw blade performs upward cutting. Single or multiple work pieces can be cut simultaneously.
  • While cutting, the oil mist splashes automatically for cooling and lubrication.
  • Cutting feed is driven by a hydraulic pneumatic cylinder for extremely stable cutting speed.
  • The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.
  • The machine permits 90 degree cutting.

Standard Equipment

24'' Saw Blade x 1pce、Replace Saw Blade Tool、Toolbox

Model

JIH-24 C Type

Cutting Angle

90 °

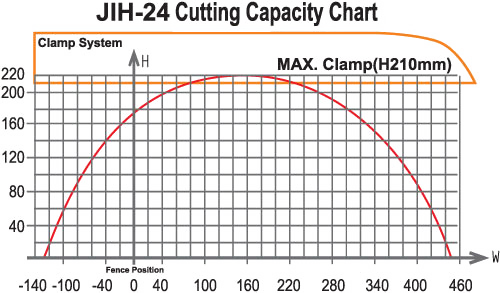

Cutting Capacity(HxW)

150 x 340, 170 x 170, 80 x 400, 40 x 420,
190 x 190(Special designation)mm

Saw Speed

1,800 R.P.M.

Saw Blade Size

10HP

Saw Blade Size

24"x1"bore

Table Area(LxW)

660x700 mm

Table Height From Floor

830 mm

Conveyor Length (Opt.)

1-7 M

Air Pressure

4-6 kgs/cm²

Machine Dimensions
( LxWxH )

830 x 1,310 x 1,460 mm

Packing Dimensions
( LxWxH )

950 x 1,430 x 1,660 mm

Net/Gross Weight

480 / 580 kgs

*We reserve the rights to modify above specification without notice.

  • CE Standard
  • Infeed, Outfeed Conveyor
  • Chip Collector
  • Horizontal Clamp
  • Hydraulic Feeding
  • 45° Fixture
  • With Auto3000 for Automatic Positioning, Automatic Feeding(Pusher),Automatic Cutting funchtions.
  • Aluminum, Brass
  • heat sink
  • PVC
  • plastic steel
  • Bakelite
  • acrylic plastic
  • Teflon
  • honeycomb board
  • wood
  • other non-ferrous metals.
