JIH-455 A - Automatic Sawing Machine Series
1.Automation feed, positioning. oil spraying and sawing.
2.Automation Feed stroke 500mm .Reciprocating length is unlimited.
3.Build-in saw blade performs upward cutting for increased safety.
4.Ball screw is driven by servo motor for high accuracy.
5.Equipped with NC control. PLC features extremely stable control performance.Electronic control parts are CE certified.
6.Feed is driven by hydraulic system, providing maximum stability of cutting.
7.Two sets each of vertical clamps combined with one set of side clamps equipped on the feed system permit cutting of irregular workpieces or simultaneous cutting of several workpieces.
8.The computer automatically records the required time and quantity for each machining process, which provides convenient calculation of machining cost.
9.During operation, the machine provides detection for lack of material. Available to set remain length to be cut.The remaining length to be cut can be set.
10.Work pieces can be stacked.
11.Feed methods : 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed
| Model | JIH-455 A Type |
| Main Machine | JIH-18D |
| Automatic Drive System | Servomotor driven Ballscrew |
| Max. Feed Distance (one cycle ) | 500mm (Reciproacting feed) |

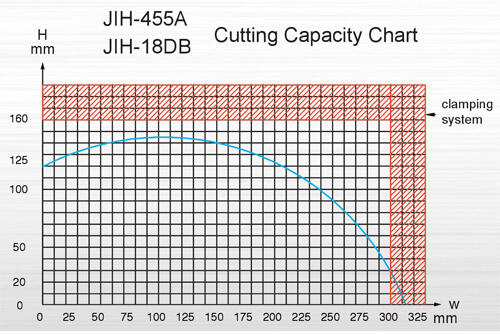

| Cutting Capacity(H x W) | 120x120 , 100x200, 20x280 mm |
| (Same as cutting capacity chart for JIH-455A TYPE) | |
| Cutting Length Display And Setting | By touch screen |
| Saw Speed | 3,200 R.P.M. |
| Saw Motor | 10 HP |
| Hydraulic Feed Motor | 1 HP |
| Servomotor | 1 kw |
| Saw blade Size | 18" x 1" bore |
| Max. Load | 100 kgs |
| Table Height From Floor | 910 mm |
| Touch Screen | 7" |
| Air Pressure | 4~6 kgs/cm² |
| Machine Dimensions (L×W×H) | 2,500 x 1,000 x 1,850 mm |
| Packing Dimensions(L×W×H) | 2,620 x 1,120 x 2,050 mm |
| Net / Gross Weight | 1,400 / 1,750 kgs |
*We reserve the rights to modify above specification without notice.
