JIH-24 D Type - Sawing Machine Series
- To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
- Concealed saw blade performs upward cutting. Single or multiple work pieces can be cut simultaneously.
- While cutting, the oil mist splashes automatically for cooling and lubrication.
- Cutting feed is driven by a hydraulic pneumatic cylinder for extremely stable cutting speed.
- The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.
- The machine permits 90° cutting.
- Independent a hydraulic pneumatic cylinder for controlling workpiece clamping and cutting feed respectively.
Model | JIH-24 D Type |
Cutting Angle | 90 ° |

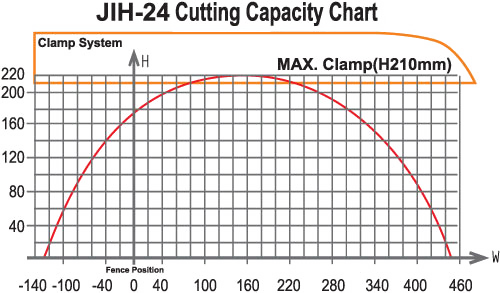

Cutting Capacity(HxW) | 175 x 175, 150 x 340 |
Saw Speed | 1,800R.P.M. |
Saw Motor | 10 HP |
Saw Blade Size | 24"x1"bore |
Table Area(LxW) | 664x560mm |
Table Height From Floor | 830mm |
Conveyor Length (Opt.) | 1-7 M |
Air Pressure | 4-6 kgs/cm² |
Machine Dimensions | 860 x 1,310x 1,850 mm |
Packing Dimensions | 980 x 1,430 x 2,050 mm |
Net/Gross Weight | 550 / 650 kgs |
*We reserve the rights to modify above specification without notice.
- CE Standard
- Infeed, Outfeed Conveyor
- Chip Collector
- Horizontal Clamp
- Hydraulic Feeding
- 45° Fixture
- With Auto3000 for Automatic Positioning, Automatic Feeding(Pusher),Automatic Cutting funchtions.
- Aluminum, Brass
- heat sink
- PVC
- plastic steel
- Bakelite
- acrylic plastic
- Teflon
- honeycomb board
- wood
- other non-ferrous metals.
