JIH-18 A Type -Sawing Machine
- Simply treadle the foot switch, and the machine will perform automatic workpiece clamping,automatic oil spray, and automatic cutting,safely and without effort.
- Concealed saw blade performs cutting from bottom to top.It allows for the cutting of a Single workpiece or multiple workpieces simultaneously.
- Automatic oil mist spray during cutting provides cooling and lubrication effect.
- Cutting feed is driven by a hydraulic-pneumatic cylinder for extremely stable cutting speed.
- The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.
- The machine can conduct 90° cut-off or 45° cutting with the use of a fixture (Optional)
Model | JIH-18 A Type |
Cutting Angle | 90 ° |

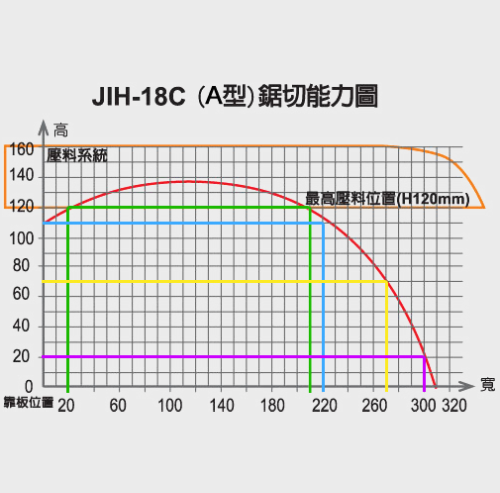

Cutting Capacity(HxW) | 115 x 115, 100 x 220 |
Saw Speed | 3,200 R.P.M. |
Saw Motor | 5HP(7.5HP，10HP opt.) |
Saw Blade Size | 18"x1"bore |
Table Area(LxW) | 640x380mm |
Table Height From Floor | 860mm |
Conveyor Length (opt.) | 1-7 M |
Air Pressure | 4-6 kgs/cm² |
Machine Dimensions | 840 x 800x 1,250 mm |
Packing Dimensions | 960 x 920 x 1,450 mm |
Net/Gross Weight | 300 / 380 kgs |
*We reserve the rights to modify above specification without notice.
- Aluminum, brass
- heat sink
- PVC
- plastic steel
- bakelite
- acrylic plastic
- teflon
- honeycomb board
- other non-ferrous metals.
- CE Standard
- Infeed, Outfeed Conveyor
- Chip Collector
- Horizontal Clamp
- Hydraulic Feeding
- 45° Fixture
- With Auto3000 for Automatic Positioning, Automatic Feeding(Pusher),Automatic Cutting funchtions.
